In the relentless pursuit of warehouse optimization, space is the ultimate currency. As land costs soar and operational efficiency becomes non-negotiable, traditional wide-aisle racking systems often fall short. Enter Very Narrow Aisle Pallet Racking (VNA racking), the high-density storage solution revolutionizing how businesses utilize their cubic space. Designed for operations demanding maximum storage capacity within a limited footprint, VNA racking dramatically increases pallet positions by minimizing aisle widths to extremes impossible with standard forklifts. But achieving this density requires specialized equipment, precise installation, and careful operational planning. This comprehensive guide dives deep into five crucial aspects of very narrow aisle pallet racking, empowering you to decide if it's the key to unlocking your warehouse's full potential.

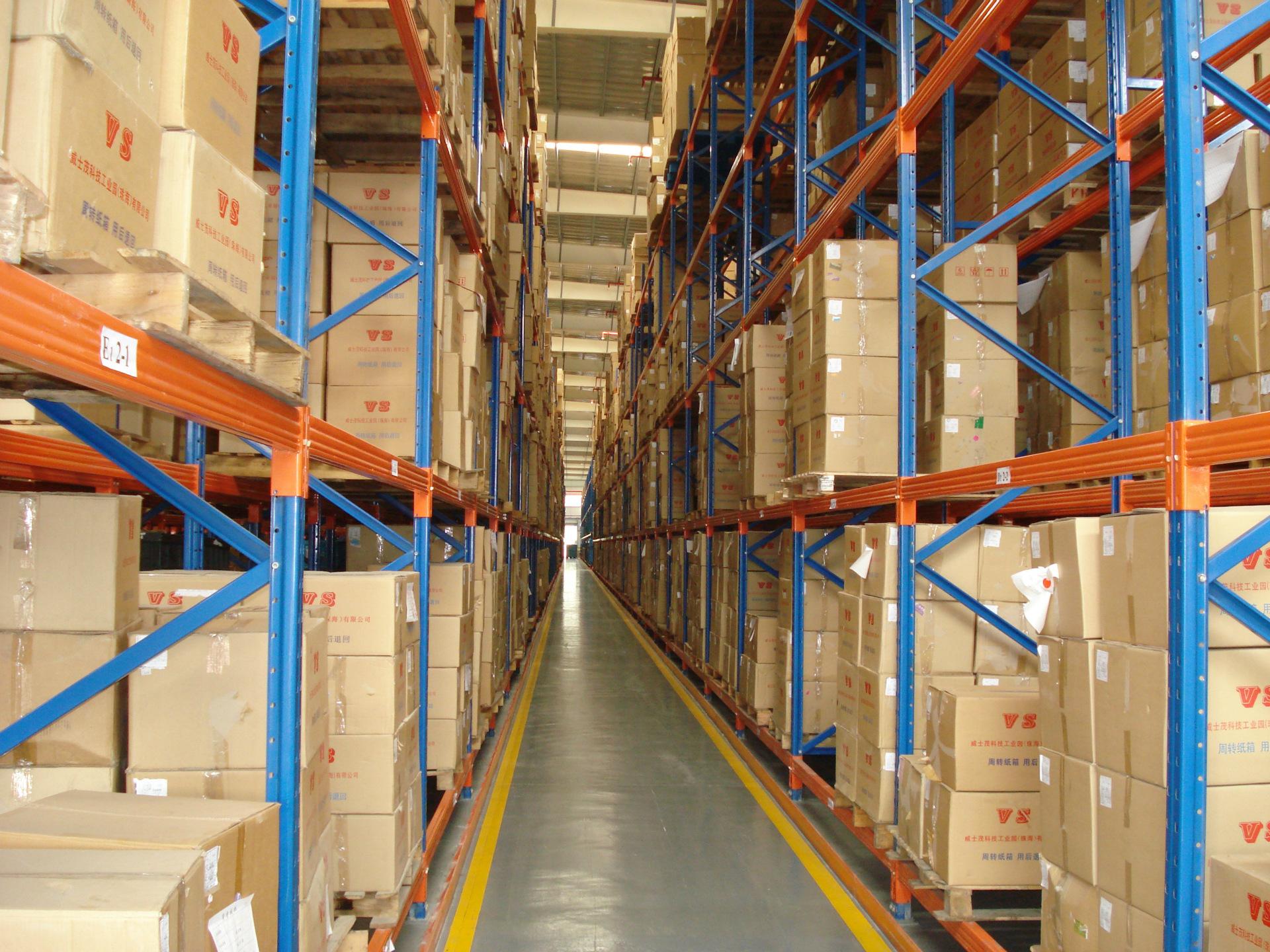

1. Defining Very Narrow Aisle Pallet Racking & Core Principles

Very Narrow Aisle Pallet Racking is a specialized high-density storage system characterized by aisles typically ranging from 1.5 to 1.8 meters (5 to 6 feet) wide – significantly narrower than the 3-3.5 meters (10-12 feet) required for standard counterbalance forklifts. This dramatic reduction in aisle width is the system's defining feature and the source of its space-saving power.

The core principle hinges on a fundamental trade-off: minimize aisle space to maximize storage density. By shrinking the travel paths between racking bays, a much larger proportion of the warehouse floor area can be dedicated to actual storage locations. VNA systems typically achieve 40-50% more pallet positions compared to wide-aisle selective racking within the same building footprint.

Unlike drive-in or push-back racking which sacrifice direct access to every pallet, very narrow aisle pallet racking retains selective access. This means every single pallet is directly accessible without needing to move others – a critical advantage for operations requiring high inventory turnover rates (FIFO or LIFO), diverse SKU storage, or strict lot control. The magic enabling this selective access in such tight confines lies in the specialized equipment used, primarily articulating very narrow aisle (VNA) forklifts or man-up order pickers. These machines combine exceptional maneuverability with the ability to operate within the razor-thin aisles created by the VNA rack structure.

2. The Critical Role of Specialized Handling Equipment

Very narrow aisle pallet racking is inextricably linked to the unique material handling equipment designed to operate within it. Standard forklifts simply cannot function effectively or safely in aisles under 2 meters wide. The backbone of VNA operations is the articulating very narrow aisle forklift.

Articulation: The defining feature. The forklift's chassis splits, allowing the front (with the mast and forks) to articulate independently from the rear (containing the power unit and operator compartment). This enables the forklift to turn corners within the extremely narrow aisle, travel straight down the center, and then angle the forks precisely towards the pallet positions on either side without the rear end swinging out and colliding with the racking.

Mast Design: VNA forklifts often feature tall, slim masts capable of reaching significant heights (commonly 12-15 meters, even up to 18m+ in some configurations) while minimizing their width profile. Free-lift capabilities are essential for operating within the rack structure.

Operator Position: Operators typically ride within the truck, seated sideways relative to the direction of travel. Advanced models offer rotating seats that swivel 90 degrees, allowing the operator to face the direction of travel when moving down the aisle and then face the load when picking or placing pallets.

Guidance Systems: Precision is paramount in VNA aisles. Guidance systems are almost always employed:

Wire Guidance: The most common and cost-effective. A wire embedded in the floor carries a low-frequency signal. Sensors on the truck follow this signal, keeping the vehicle perfectly centered in the aisle, minimizing operator steering input and preventing rack collisions.

Optical/Tape Guidance: Uses reflective tape or optical markers on the floor for the truck's sensors to follow. Easier to modify than wire guidance.

Laser Guidance: Advanced systems use lasers to reference fixed points (like rack uprights) to maintain position. Highly flexible for complex layouts.

Man-Up Order Pickers: For case picking operations within VNA racking, specialized man-up order pickers are used. These allow the operator's platform to elevate with the forks, enabling precise picking at height within the narrow aisle structure.

3. Unlocking Unprecedented Space Utilization & Density

The primary driver for implementing very narrow aisle pallet racking is its unparalleled ability to maximize storage density within a given warehouse footprint. This is quantified through several key metrics:

Aisle Space Reduction: By reducing aisle widths by 50% or more compared to wide-aisle systems, VNA racking reclaims vast amounts of floor space previously dedicated solely to vehicle travel. This reclaimed space is directly converted into additional storage lanes.

Increased Pallet Positions: As mentioned, typical gains are 40-50% more pallet positions compared to selective racking. In some cases, especially in taller buildings, gains can exceed 60%. This directly translates to storing more inventory without expanding the building footprint.

Optimized Cubic Space Utilization: VNA systems excel in warehouses with high ceilings. By facilitating safe and efficient access to heights often exceeding 12 meters (40 feet), they make full use of the building's vertical cube, maximizing the return on investment in the building shell itself.

Reduced Building Costs (Potentially): For new construction, the increased density achieved with very narrow aisle pallet racking can potentially allow for a smaller overall building footprint to achieve the same storage capacity as a wider-aisle system. This significantly reduces land acquisition costs, foundation work, roofing, cladding, and associated construction expenses. Even in existing buildings, VNA allows for capacity expansion without costly extensions.

Layout Flexibility: While requiring precision, VNA racking layouts can be designed to fit irregularly shaped buildings more efficiently than wide-aisle systems, further optimizing the use of available space.

4. Warehouse Infrastructure & Operational Requirements

Implementing very narrow aisle pallet racking is not simply about installing racks and buying trucks. It demands a higher level of warehouse specification and operational discipline:

Precise Floor Flatness (FF): This is arguably the most critical infrastructure requirement. VNA operations, especially at height and speed, demand an exceptionally flat floor to ensure truck stability, prevent load shifting, and enable accurate guidance system operation. Floors typically require an FF 50/FL 50 flatness specification (or stricter) according to international standards (e.g., ASTM E1155, DIN 18202). Significant deviations can cause truck oscillation, damage to racks/trucks, and safety hazards.

Robust Racking Design & Installation: VNA racks are subject to very specific forces, especially lateral forces during truck operation in tight confines. Uprights require thicker gauge steel (e.g., 3mm+), deeper base plates, and often increased bracing compared to selective racking. Installation must be extremely precise – uprights must be perfectly plumb, rows perfectly straight and parallel, and beam levels perfectly horizontal. Laser alignment is standard practice. Regular, rigorous rack inspections are non-negotiable.

Overhead Clearance & Lighting: Adequate clearance is needed between the top of the stored pallets and any overhead obstructions (sprinklers, lights, ducting, trusses). Lighting must be sufficient throughout the aisle heights, often requiring specialized high-level lighting solutions. Guidance wire installation requires careful planning around floor joints and services.

Operational Discipline & Training: VNA operations require highly skilled, certified operators. Strict speed limits within aisles, careful load handling, and absolute adherence to safety protocols are essential. Pedestrian traffic must be completely segregated from VNA aisles. Comprehensive, ongoing training programs are mandatory. Warehouse Management Systems (WMS) are highly recommended to optimize put-away and retrieval paths, maximizing efficiency and minimizing truck travel.

Maintenance Regime: Both the very narrow aisle pallet racking and the specialized forklifts require rigorous, proactive maintenance schedules to ensure safety and uptime. Truck guidance systems and articulation mechanisms need regular checks.

5. Analyzing the Cost-Benefit Equation & Ideal Applications

Investing in very narrow aisle pallet racking involves significant capital expenditure. A thorough cost-benefit analysis is crucial:

Higher Initial Costs:

Racking: VNA racking itself is more expensive per linear foot than selective racking due to heavier-duty components and stricter installation requirements.

Equipment: Articulating VNA forklifts or man-up order pickers are significantly more expensive than standard counterbalance or reach trucks.

Infrastructure: Achieving the required floor flatness (especially retrofitting an existing floor) and specialized lighting/guidance systems add substantial cost.

Compelling Benefits & ROI:

Massive Storage Gains: The 40-60% increase in pallet positions is the primary ROI driver. This avoids costly new construction or off-site storage.

Reduced Operating Costs (Long-Term): Higher density reduces travel distances for put-away and picking (within the VNA area), potentially lowering labor and energy costs per pallet moved. More efficient space use reduces heating/cooling costs per pallet stored.

Improved Inventory Management: Selective access supports better inventory control and rotation (FIFO/FILO).

Enhanced Productivity: Faster cycle times can be achieved within the dense storage area compared to traversing large wide-aisle warehouses.

Building Cost Savings (New Builds): Potential for a smaller, cheaper building envelope.

Ideal Applications for Very Narrow Aisle Pallet Racking:

High-Value Real Estate: Warehouses in locations with expensive land or rental costs.

Limited Existing Space: Operations physically constrained from expanding their building footprint.

High-Cube Warehouses: Buildings with clear heights of 10 meters (33 feet) or more.

Operations with High-Value Inventory: Where maximizing storage per square foot is critical.

High-Volume Distribution Centers: Needing dense storage combined with selective access for high SKU count and turnover.

Cold Storage: Where space is extremely expensive, and density gains offer huge cost savings on energy.

Beyond the Basics: Implementation Considerations

Successfully deploying very narrow aisle pallet racking requires careful planning:

Expert Consultation: Engage experienced VNA racking manufacturers, system integrators, and handling equipment suppliers early in the design process.

Detailed Simulation & Planning: Use warehouse simulation software to model workflows, truck movements, and throughput capacity within the proposed VNA layout.

Phased Implementation (if possible): Consider implementing VNA in a specific zone of the warehouse first to manage risk and adapt operations.

WMS Integration: Ensure seamless integration between the physical VNA system and the Warehouse Management System for optimal slotting and task direction.

Safety First: Develop comprehensive safety protocols, including aisle access control, speed limits, pedestrian exclusion zones, and clear emergency procedures. Invest in rack protection (column guards, end-of-aisle protectors).

Very Narrow Aisle Pallet Racking represents the pinnacle of high-density selective storage. By ruthlessly minimizing aisle widths and leveraging specialized handling equipment, it unlocks unparalleled storage capacity within existing or new warehouse footprints. While demanding significant investment in infrastructure, equipment, and operational rigor, the potential rewards in terms of space utilization, operational efficiency, and long-term cost savings are immense. For warehouses constrained by space, operating in high-cost areas, or handling high-value inventory under high ceilings, VNA racking isn't just an option; it's a strategic imperative. Careful evaluation of the five key aspects outlined – definition & principles, equipment needs, space gains, infrastructure requirements, and the cost-benefit equation – is essential to determine if very narrow aisle pallet racking is the key to optimizing your storage potential and driving your logistics operation forward.
